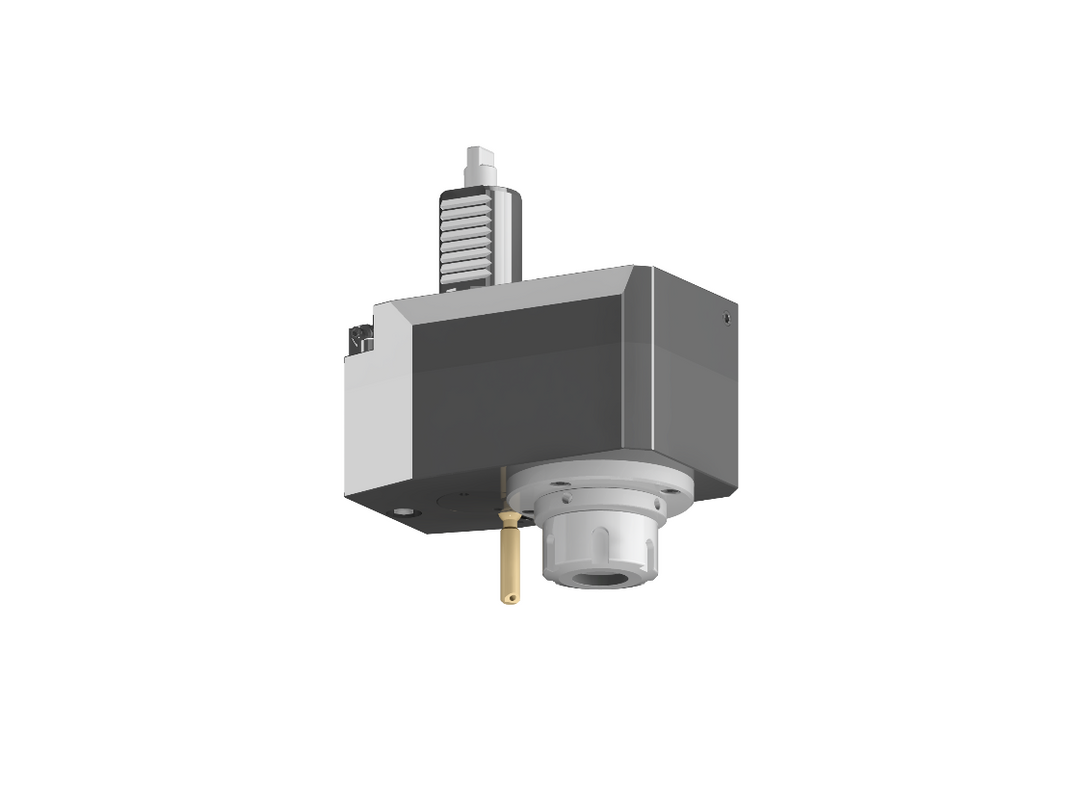

VDI 30, straight + offset tool holder, coupling DIN 1809, without internal cooling
RGX1-30/321-25/1.1-50(2:1)
| Execution / Product Type | Offset straight tool holder |
|---|---|
| Tool Holder Type | Live tool holders |
| Turret Interface Type | VDI 30 |
| Drive Coupling Type | DIN 1809 |
| Coolant | without internal cooling |
| Tool Grip Dimension | Collet ER25 |
| Transmission Ratio | 2:1 |
| Torque [Nm] | 40.0 |

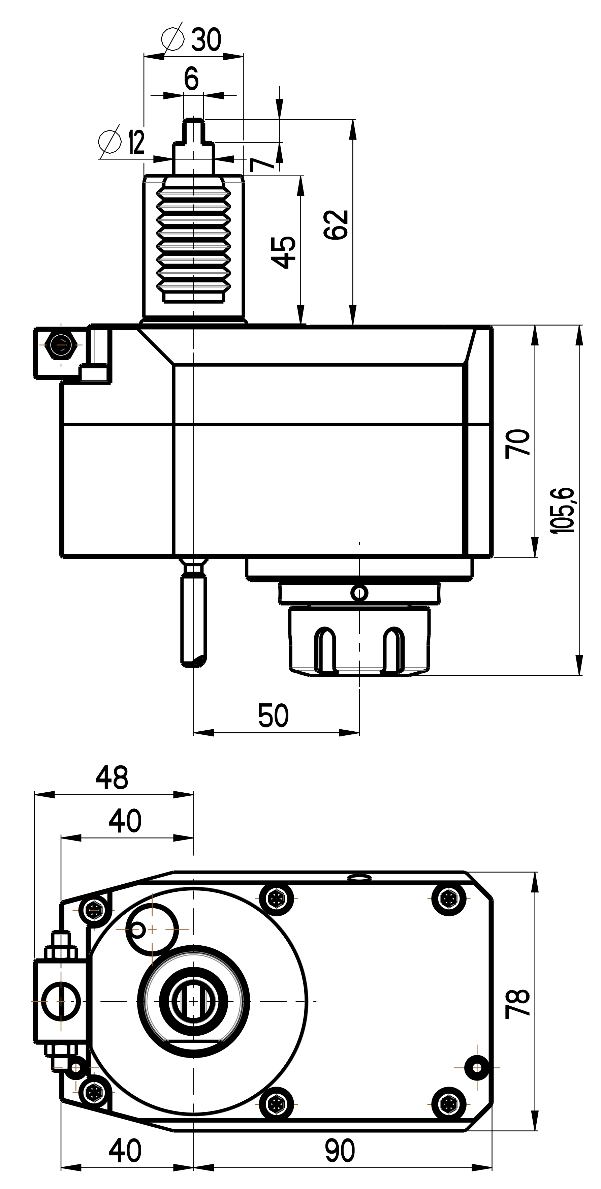

| Height [mm] | 50.0 |
| Direction | Right |
Compatible Machines
- All components are machined to tight tolerances to help each customer produce very precise parts on CNC lathes.
- Each product is tested on a special test bench for heat, vibration, noise level and leak tightness.
- Each functional part has passed a strict final inspection by measuring dimensional and functional parameters.
- The noise level is reduced by cyclo-palloid gears, as well as careful machining, controlled heat treatment and final lapping.
- The final quality control is carried out on suitable measuring devices and a documented measurement report is created using a 3D measuring machine for each Live tool holder
- Each product purchased comes with a certificate of quality and conformity and a 12-month manufacturer's warranty.
- Repairs and/or maintenance after the warranty period has expired are also provided by RG-Tools GmbH and our service partners.
- Proper product packaging ensures safe transport to your destination.
